UltrEco 24,000 BTU 3 Zone Mini Split Heat Pump, 23 SEER2, Wifi, 7K + 7K + 18K

A single thermostat averages the whole house and reads one room. Somebody is always too warm or too cold. Closing vents to rebalance a room just moves the problem somewhere else and strains the blower.

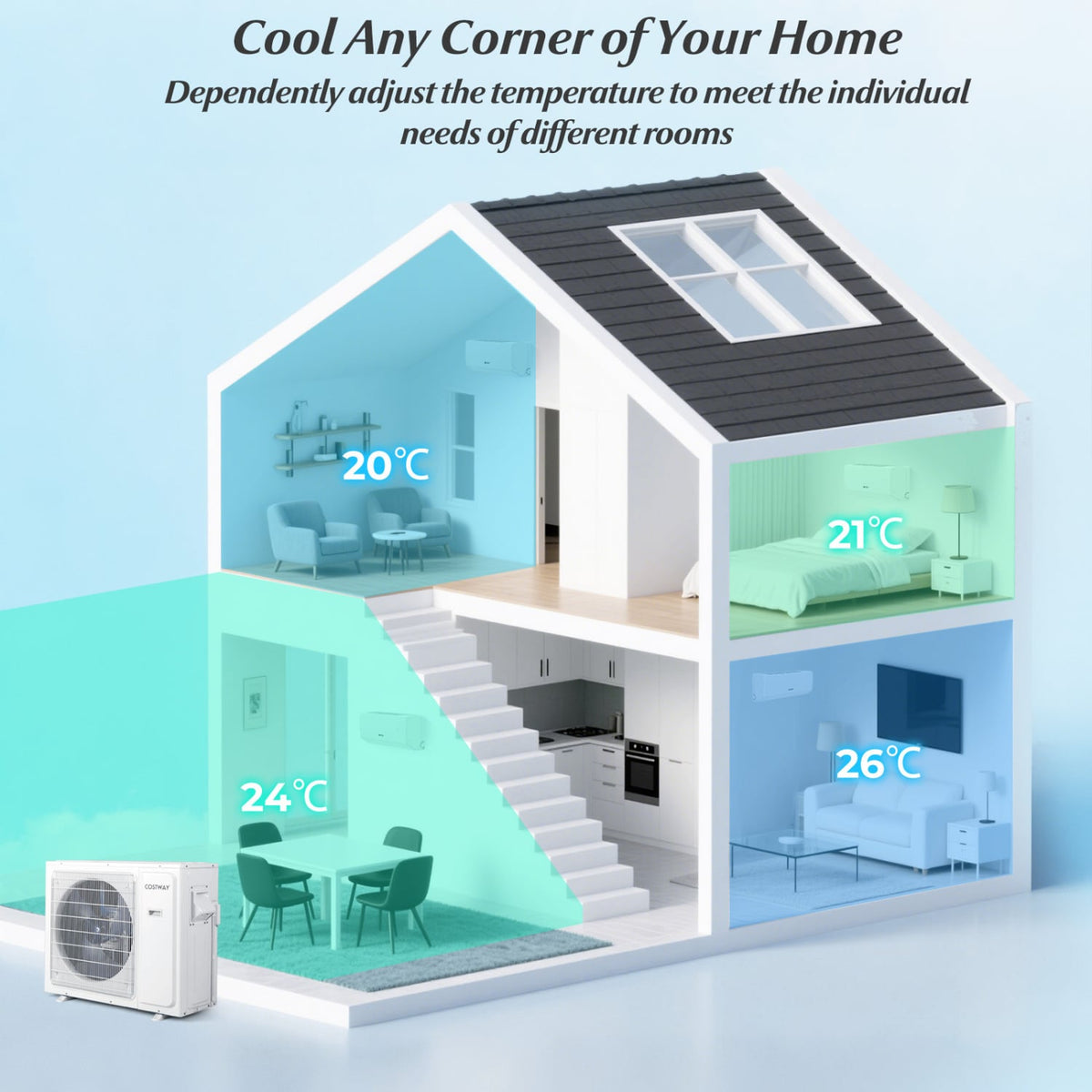

Three zones measure and correct their own space. The 18,000 BTU unit can hold one room cool while the 7,000 BTU unit heats another, and both report back to the same 24,000 BTU outdoor unit without fighting each other.

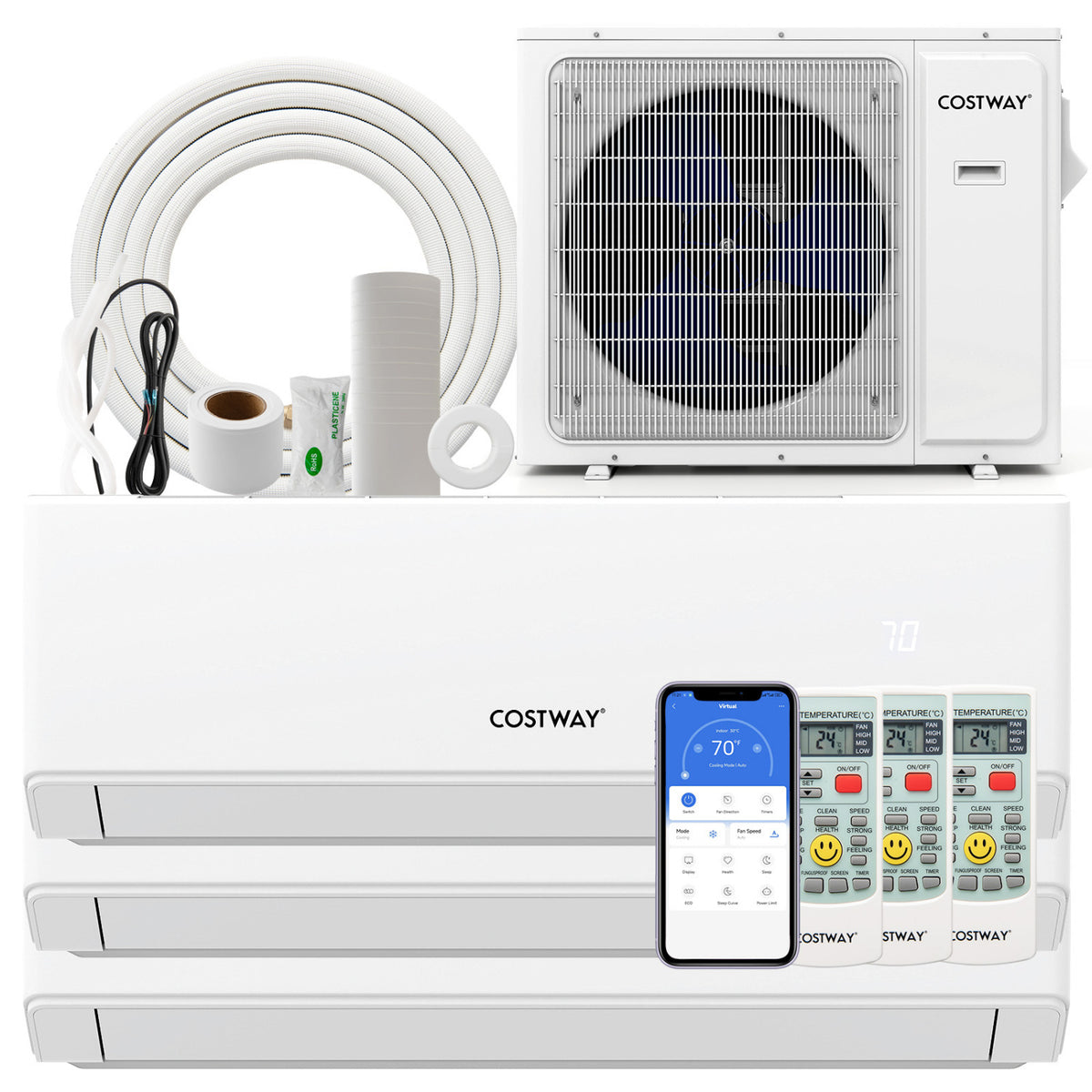

What a three zone kit looks like out of the carton

One 24,000 BTU condenser, three indoor units of 7,000, 7,000 and 18,000 BTU, and a coil of insulated copper with wiring, tape and putty for each zone. The 18,000 BTU unit is the largest of the three, so point that one at the busiest room.

Line sets included, not quoted separately

On a lot of multi-zone quotes the copper is a line item. Here each zone arrives with its own 16 ft insulated line set and 13 ft of communication wire and a 6.5 ft drain hose, along with sleeves, caps, screws, putty and tape.

What happens when it gets properly cold

The outdoor unit carries a chassis electrical heater, which keeps the base pan clear so meltwater does not freeze under the coil. The manufacturer rates heating down to -25°C (-13°F) and cooling up to 52°C (125°F). Natural Resources Canada notes most air source heat pumps stop somewhere between -15°C and -25°C, so plan on a backup heat source for the coldest nights.

Sleeping in the same room as it

Sleep mode eases the set point overnight, the display can be switched off so nothing glows at you, and the 24 hour timer can shut a zone down after you drop off. The 7,000 BTU unit is rated 30 dB indoors. A quiet library sits around 40 dB for comparison.

One 24,000 BTU outdoor unit runs all three indoor units. Each zone starts, stops and holds its own temperature, so an empty room costs nothing.

A common rule of thumb is 20 to 25 BTU per square foot (Carrier publishes 25). Here, a 7,000 BTU unit suits roughly 280 to 350 sq ft and an 18,000 BTU unit suits roughly 720 to 900 sq ft. Natural Resources Canada points to CSA F280-12 for a proper load calculation.

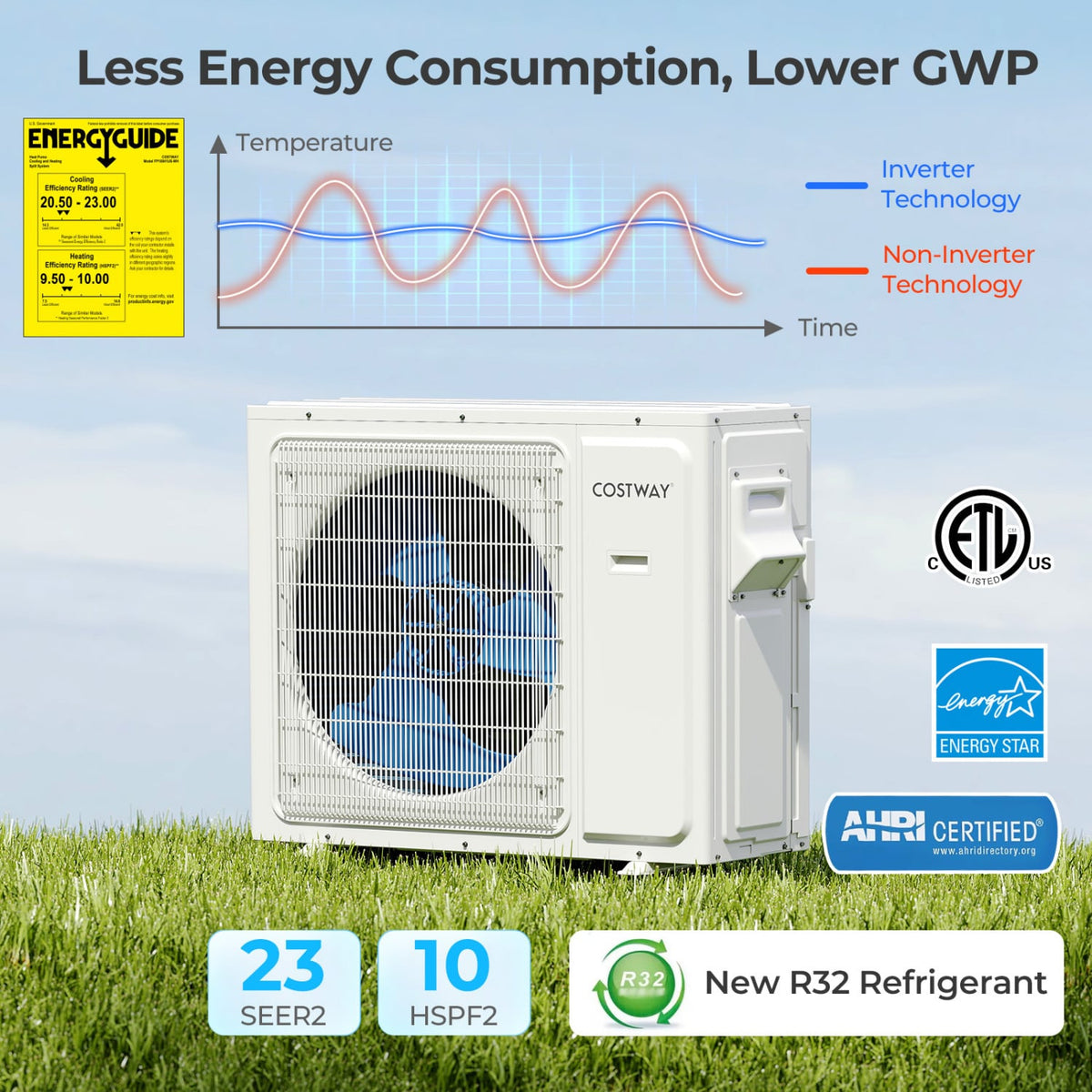

The compressor varies its speed instead of cycling on and off. Published ratings are 23 SEER2 for cooling and 10 HSPF2 for heating.

A chassis electrical heater keeps the outdoor base pan clear. The manufacturer rates heating down to -25°C (-13°F) and cooling up to 52°C (125°F).

Each zone gets a 16 ft insulated copper line set and 13 ft of communication wire, plus a 6.5 ft drain hose. That is the material most quotes list separately.

The outdoor unit runs on 208-230V~60Hz, single phase. It wants its own branch circuit, sized from the MCA and maximum breaker figures on the unit's own nameplate, with a disconnect within reach.

Wifi app plus a remote with a digital display for each zone, and a 24 hour timer.

The indoor filters pull out, rinse under a tap and go back in. Clean filters are the cheapest way to keep airflow and running cost where they should be.

Ships from a Canadian warehouse. Free shipping on orders over $150. Some remote areas, PO boxes and surcharge regions may be excluded or charged extra.

Return within 14 days of purchase, unused, in original condition and packaging.

Covered directly by the manufacturer under their warranty terms for material and manufacturing defects.

The 18,000 BTU unit is sized for an open living and dining space, roughly 720 to 900 sq ft. The other two zones cover normal bedrooms without oversizing them.

Older houses, additions, attic conversions and finished basements rarely have ducts where they are needed. Three zones from one outdoor unit avoids opening up ceilings.

This is a heat pump, not a cooling-only air conditioner. It carries an HSPF2 heating rating of 10 and a chassis heater for winter operation.

What we stand behind

• Ships from a Canadian warehouse, with free shipping on orders over $150
• 14 day returns on unused items in original condition and packaging
• Covered by the manufacturer's own warranty for material and manufacturing defects
• Line sets, communication wire and a controller for every zone are in the box

How much space will each indoor unit cover?

Sizing runs off the heat load of the room, not just its floor area, and Natural Resources Canada points to CSA F280-12 for the real calculation. As a rough check, 20 to 25 BTU per square foot is the usual rule of thumb. Here, a 7,000 BTU unit suits roughly 280 to 350 sq ft and an 18,000 BTU unit suits roughly 720 to 900 sq ft. Poor insulation, big west-facing windows or a 9 ft ceiling all push that figure up.

The three indoor units add up to 32,000 BTU but the outdoor unit is 24,000 BTU. Is that a mistake?

No. On any multi-zone system the indoor ratings are not meant to be added together, and sizing guides for multi-zone equipment say so plainly. The 24,000 BTU figure is what the outdoor unit can deliver at one time, and it is shared among whichever zones are calling for it. Three rooms rarely peak at the same moment, which is why this combination is offered.

How cold can it get outside before it stops heating?

The manufacturer rates low ambient heating down to -25°C (-13°F), helped by an electric heater in the outdoor chassis. Natural Resources Canada notes that air source heat pumps lose capacity and efficiency as it gets colder, with typical COPs falling from 2.0 to 5.4 at 8°C to 1.1 to 3.7 at -8°C, and that most units have a minimum operating temperature between -15°C and -25°C. Keep a backup heat source for the coldest stretches.

Can I install this myself in Canada?

Plan on a licensed installer. In Ontario, for example, the province states that by law only a certified technician may remove, discharge, handle and dispose of refrigerants, including HFCs, and that mechanical work on refrigeration equipment needs a Certificate of Qualification on top of the refrigerant certificate. Other provinces have their own halocarbon rules. The federal Code of Practice says the same thing in plainer terms: the technician doing work that could release refrigerant must hold the proper environmental certification. The 208-230V~60Hz, single phase power supply also means an electrician and a dedicated circuit.
