AlumiRamp Armada Modular Aluminum Ramp Kit, ADA/ANSI-Compliant
Description

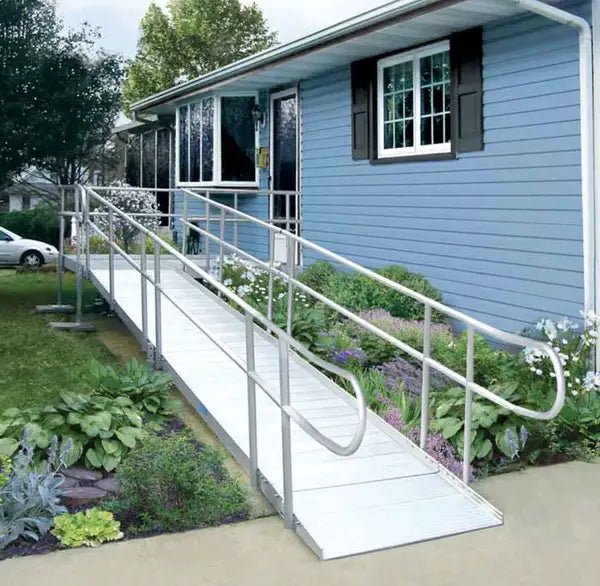

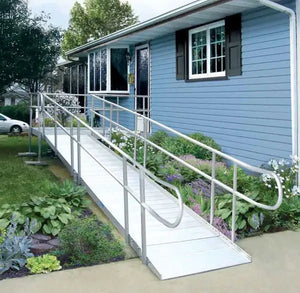

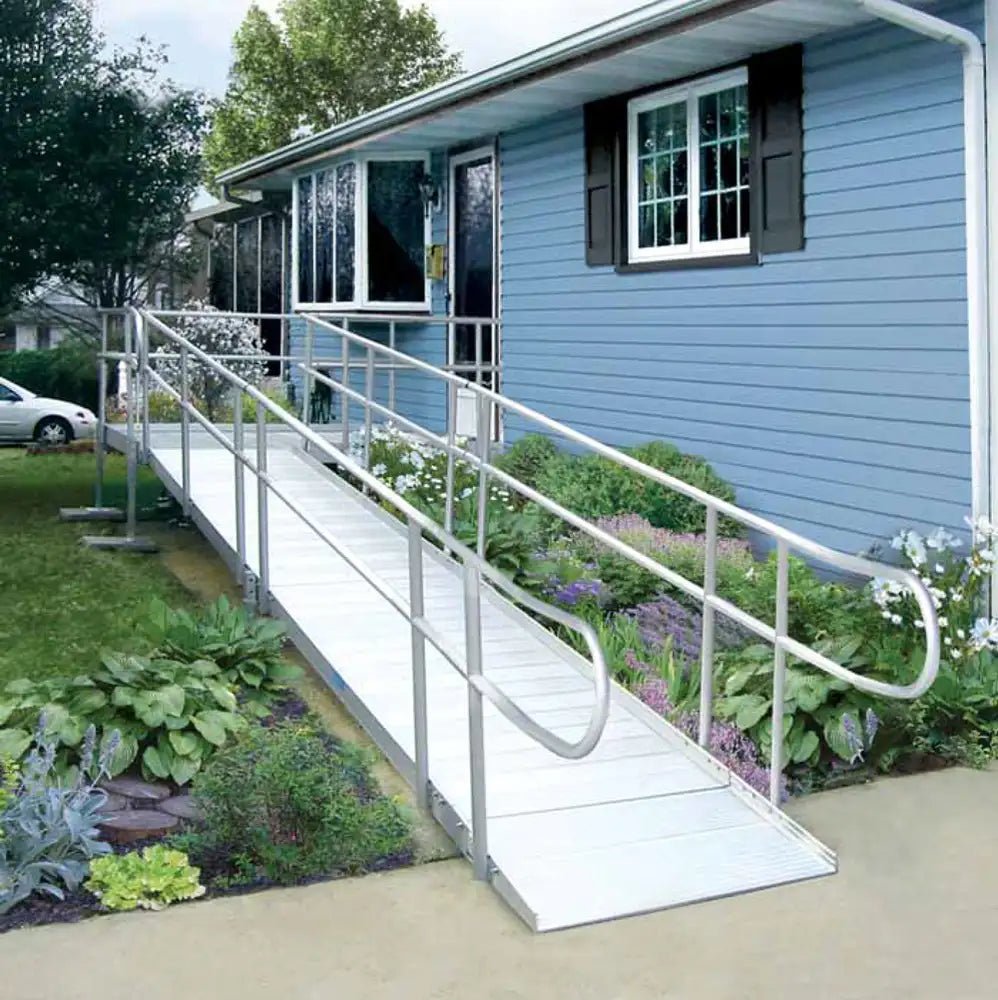

AlumiRamp Armada Modular Aluminum Ramp Kit
Armada is AlumiRamp's fully aluminum modular ramp system, engineered to ANSI and ADA section 4.8 guidelines for slope, handrails and gripping surface, with platform landings that let a ramp turn 90 or 180 degrees where a straight run won't fit.
The welded, anodized 6061-T6 or 6005-T5 aluminum frame carries a 300 lb concentrated load rating and a 100 lb/sq ft live load rating, per AlumiRamp, and every section - straight or through a turn - holds the same 1:12 slope, so a directional change never forces a steeper stretch of ramp.
A turn platform, not a compromise
When a driveway or lot line rules out one long straight ramp, Armada's platform landing sections carry the run through a 90 or 180 degree turn while each segment keeps AlumiRamp's 1:12 slope on its own - no steeper transition to make up the difference.
Handrails and tread built to the code section they cite
AlumiRamp specs a top rail 30-34 in above the ramp surface, an intermediate rail at 18-22 in, and a 1.5 in continuous gripping surface - the dimensions ADA section 4.8 sets out - over an interlocking, bidirectional knurled tread.
What you get
ADA & ANSI compliant design
Meets ANSI and ADA section 4.8 guidelines for slope, handrails and gripping surface, per AlumiRamp.
300 lb concentrated / 100 lb per sq ft live load
AlumiRamp's stated load ratings for the Armada system.
Anodized 6061-T6 / 6005-T5 aluminum
Welded, corrosion-resistant frame with stainless steel fasteners.
Fully modular and relocatable
Sections bolt together with a 1/2 in wrench and can be disassembled and reinstalled elsewhere.
Specifications
| Brand | Armada by AlumiRamp |
|---|---|
| Material | Aluminum 6061-T6 or 6005-T5, welded, anodized |
| Ramp sections | 4, 5, 6, 8 ft; custom lengths available |
| Tread | Interlocking 1 in x 6 in, bidirectional knurled |
| Live load | 100 lb per sq ft |
| Concentrated load | 300 lb |
| Handrail height (top / intermediate) | 30-34 in / 18-22 in |
| Handrail grip diameter | 1.5 in |
| Slope rule | 1:12 (1 ft of ramp per 1 in of rise) |
| Code compliance | ANSI and ADA section 4.8 (handrails) |
| Warranty | 10 years, materials and workmanship |
Rise to ramp run at AlumiRamp's 1:12 planning ratio
Shipping
Ships from a Canadian warehouse. Orders over $150 ship free; some remote areas, PO boxes and surcharge regions may cost extra or be excluded.
Returns
Send it back within 14 days of purchase if it is unused, in its original condition and packaging.
Warranty
Covered directly by AlumiRamp under their manufacturer's warranty for material and manufacturing defects.
Who is this perfect for?
Sites that need a 90 or 180 degree turn
Platform landings carry the run around a corner without a steeper compensating slope.
Projects needing documented code compliance
ADA section 4.8 and ANSI guideline references support permit or inspection paperwork.
Frequently asked questions
Is Armada ADA compliant?
AlumiRamp states the Armada system meets ANSI and ADA guidelines, including ADA section 4.8 for handrail height, gripping surface and slope; confirm specifics with your local building department for permit purposes.
How does the turn affect ramp length?
Each straight segment before and after a turn platform keeps the same 1:12 slope independently - the turn platform doesn't shorten the total run you need for your rise.
What's the weight rating?
AlumiRamp rates Armada to 100 lb per sq ft live load and 300 lb concentrated load.
Can it be moved to a different house or entrance?
Yes, AlumiRamp designs Armada's bolted aluminum components to be disassembled with a 1/2 in wrench and reinstalled at a new site.
